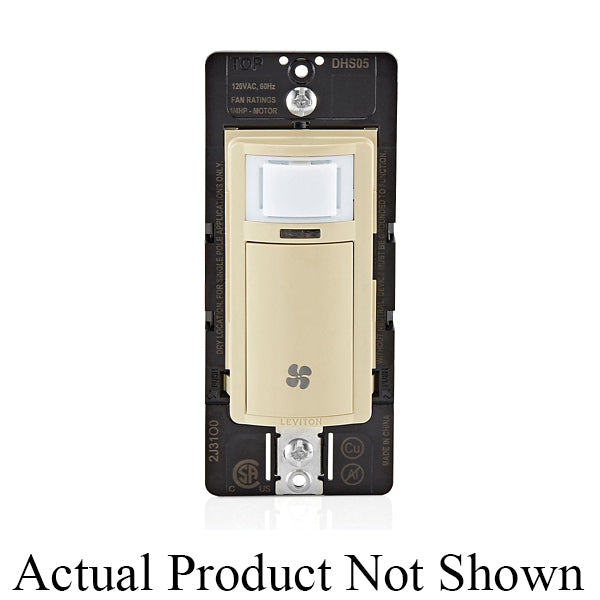

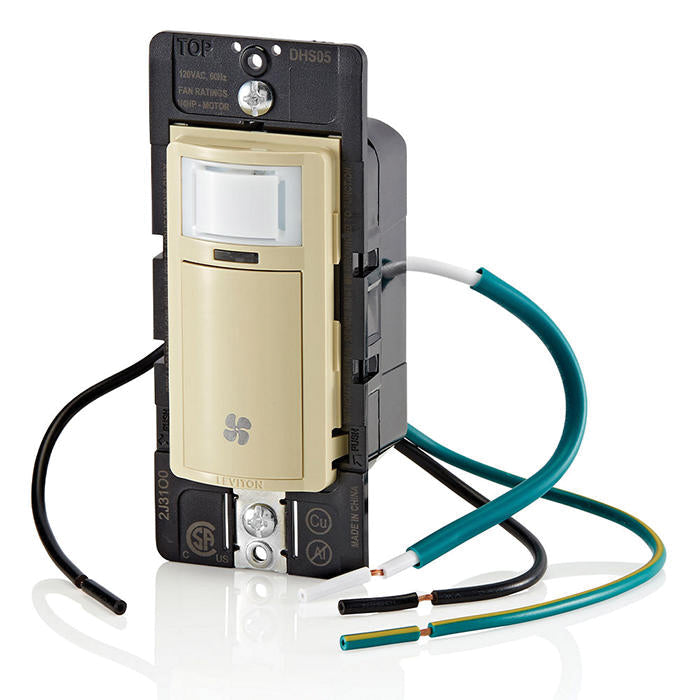

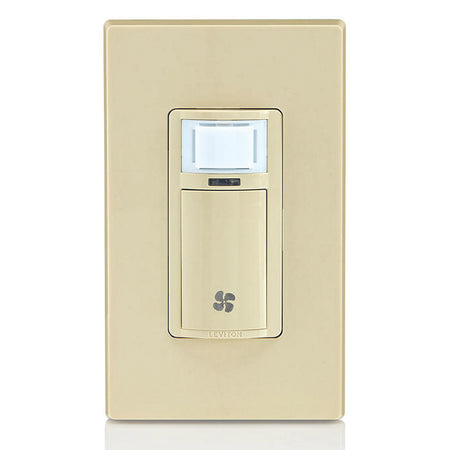

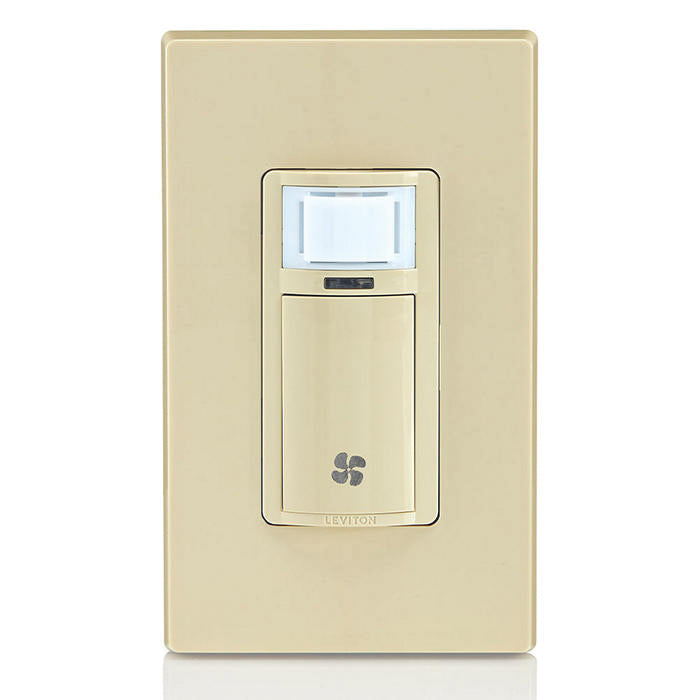

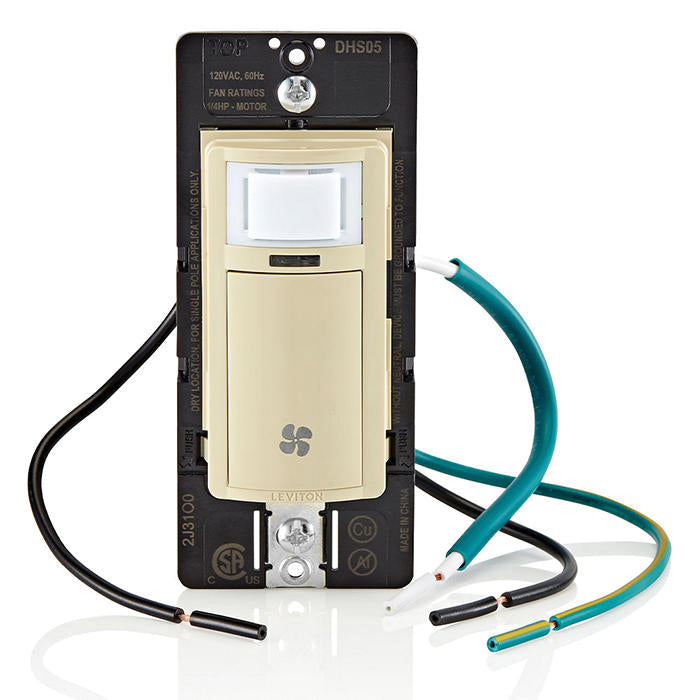

Leviton® R02-DHS05-1LM Fan Control Switch, 120 VAC, Operating Modes: On-Off

Only 1 left
SKU: 3494168
(0)
$39.99
Have A Product Question? Ask Us!
Free Same Day In-Store & Curbside Pickup.
Proudly 100% Employee-Owned & Operated In Marin County.
Leviton® Fan Control Switch, 120 VAC, 300 to 600 W, 60 Hz, 1 Poles, Residential Grade, Operating Modes: On-Off, ED, CFL, Incandescent, Halogen, MLV, ELV Load, 0 to 40 deg C, 4.13 in Height, 1.73 in Width, 0.95 in Depth, Additional Information: Green and Red LED, 0.5 W Power Consumption, Humidity Sensor, Decora Style, Relay Switch, 10, 20, 30 or 45 min Time Delay, Ground or Neutral Required Wiring

Features:

  • Replaces a single pole switch for control of a ventilation fan or fan/light combination
  • Automatically detects excess humidity in a room and activates the ventilation fan to lessen condensation which helps reduce mold and mildew
  • Helps reduce energy usage by automatically operating the fan only when needed
  • For use with ventilation fans up to 1/4 HP
  • Compatible with LED, CFL, Incandescent, Halogen, MLV and ELV lighting loads

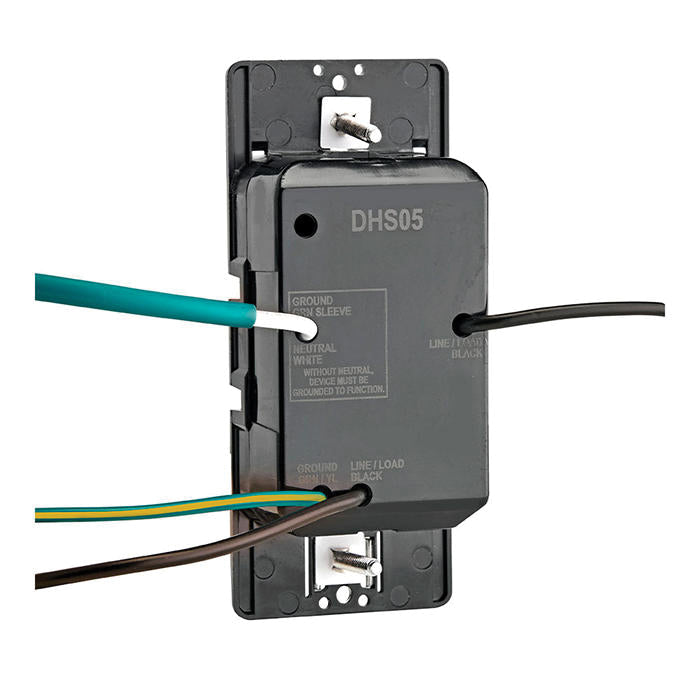

  • Can be connected to Neutral wire if Neutral is present in the wallbox; or to Earth ground if no Neutral wire is present in the wallbox
  • Interchangeable line and load wires saving installation time
  • Microprocessor control with digital sensing technology
  • Zero Cross turn-on technology extends the life of switching relays
  • Advanced sensing enhances detection when the room is occupied and minimizes false triggers when unoccupied
  • Operating Modes for bath fan, air cycle and humidistat
  • Test mode to help with sensor placement and setting adjustments
  • Can be used to comply with the requirements of 2019/2022 California Title 24, Part 6, Indoor Air Quality and Mechanical Ventilation
  • Complies with the requirements of 2019/2022 CALGREEN, Part II, Indoor Air Quality and Exhaust
  • Meets requirements of ASHRAE 62.2

Other Attributes:

  • SKU: 3494168
  • Voltage Rating: 120
  • Power Rating: 300 to 600
  • Frequency Rating: 60
  • Number of Poles: 1
  • Grade: Residential
  • Operating Modes: On-Off
  • Load Type: ED, CFL, Incandescent, Halogen, MLV, ELV
  • Temperature Rating: 0 to 40
  • Height: 4.13
  • Width: 1.73
  • Depth: 0.95
  • Additional Information: Green and Red LED, 0.5 W Power Consumption, Humidity Sensor, Decora Style, Relay Switch, 10, 20, 30 or 45 min Time Delay, Ground or Neutral Required Wiring
