Casa » Southwire® Titan®2 550 Type-UL Liquidtight Flexible Metal Conduit
Southwire®

Southwire® Titan®2 550 Type-UL Liquidtight Flexible Metal Conduit

En existencia
SKU: 3296837
(0)
$5.99
Bend Radius
Inside Diameter
Length
Have A Product Question? Ask Us!
Free Same Day In-Store & Curbside Pickup.
Proudly 100% Employee-Owned & Operated In Marin County.

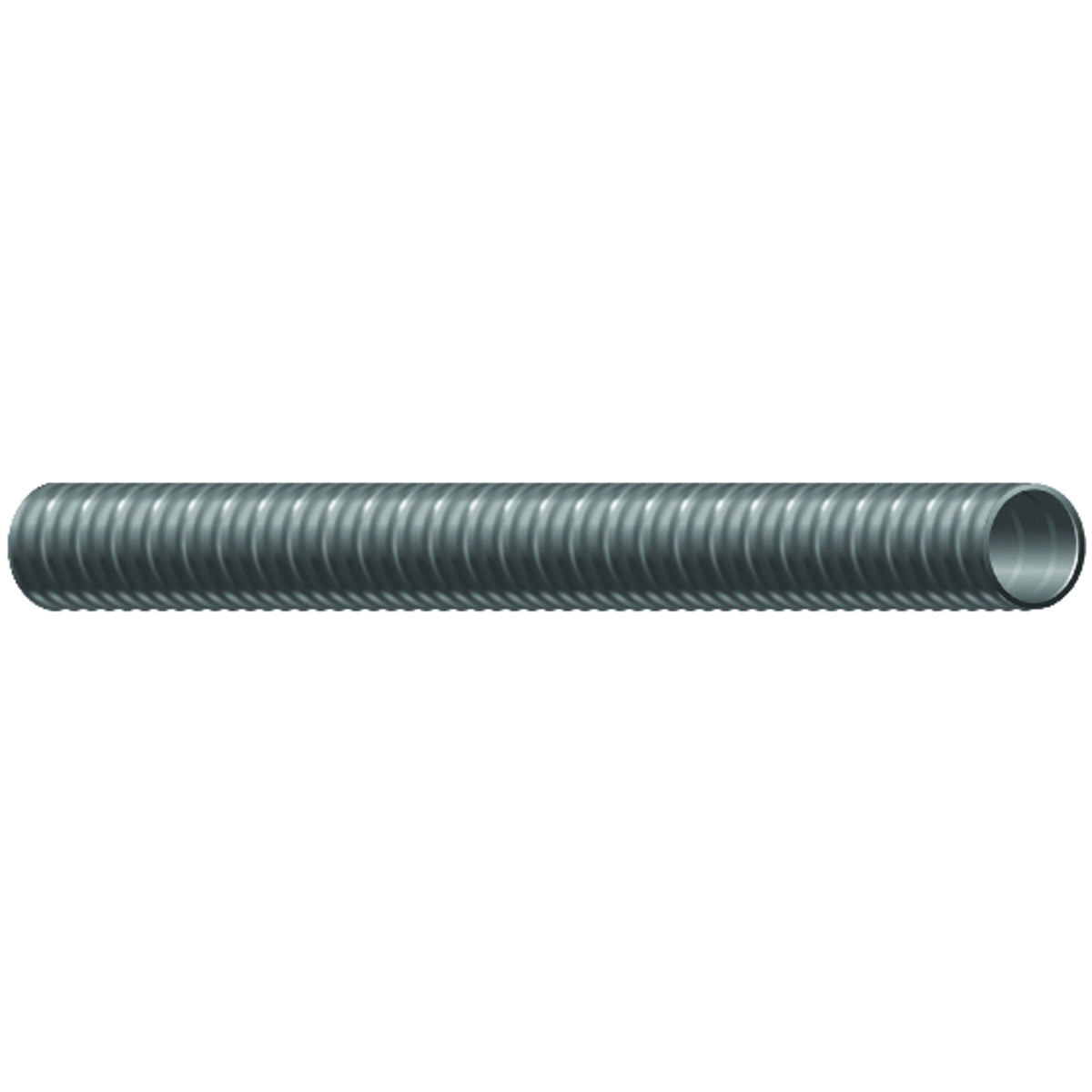

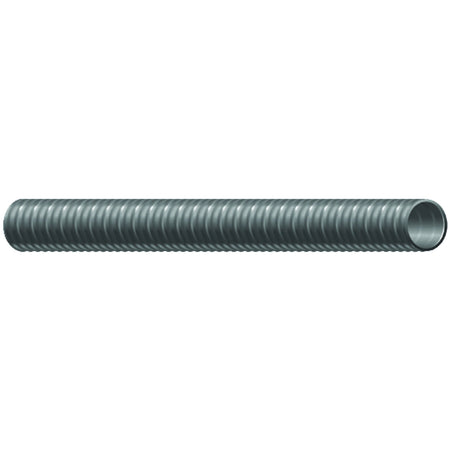

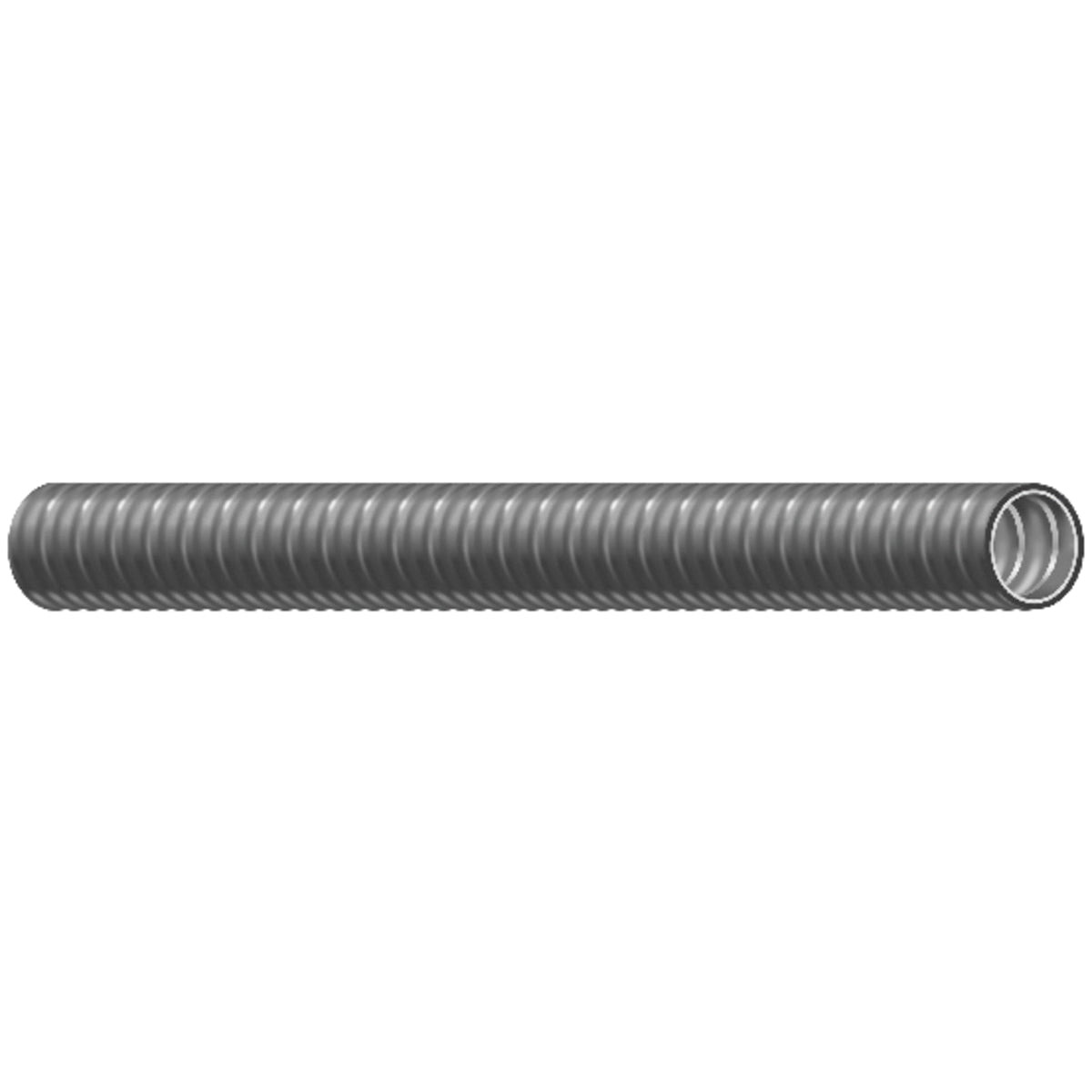

Southwire® Type-UL Liquidtight Flexible Metal Conduit, 1 in Trade, 1.041 to 1.066 in Inside Diameter, 4.12 to 4.315 in Outside Diameter, 100 ft Length, 13 in Bend Radius, Steel Core, PVC, Gray, Finish: Hot-Dipped Galvanized, -55 to 80 deg C

Features:

  • A protective thermoplastic outer jacket which seals out water, liquids, abrasives, alcohol, coolants, corrosive fumes and gases, dirt, grease, mineral acids, non-concentrated fixed alkaline, petroleum oils, salt air and spray and weather
  • Smooth interior for easy wire pulling
  • UV sunlight-resistant jacket
  • Rated for temperature range of -30 deg C to 80 deg C , 60 deg C oil (-22 to +176, 140 deg F oil)
  • Accepts standard metallic liquidtight fittings
  • Rated for direct burial applications including concrete encasement

Other Attributes:

  • SKU: 3296837
  • Trade Size: 1
  • Inside Diameter: 1.041 to 1.066
  • Outside Diameter: 4.12 to 4.315
  • Length: 100
  • Bend Radius: 13
  • Core Material: Steel
  • Material: PVC
  • Color: Gray
  • Finish: Hot-Dipped Galvanized
  • Temperature Rating: -55 to 80

Documents:

Technical Bulletin
Specification Sheet

Warning:

California Proposition 65 Warning.
